h9 vs h10 vs h11 Tolerance for Cold Drawn Stainless Steel Bars: ISO 286-2 Guide
Compare h9, h10 and h11 tolerance for cold drawn stainless steel bars under ISO 286-2, with practical tolerance examples, size ranges and machining selection tips.
Introduction
For a buyer comparing a h9 tolerance stainless steel bar with a looser stock bar, tolerance is not a small detail. It is the hidden contract between the drawing, the machining process and the final part fit. In cold drawn bar tolerances, a few dozen micrometers can decide whether the bar feeds smoothly, fits a bearing seat, or creates extra machining work after arrival.
This guide explains h9, h10 and h11 for ISO 286-2 stainless steel bars in practical sourcing language. The goal is not to replace the project drawing or the full ISO standard. The goal is to help machining buyers understand what the tolerance code means before asking for a quotation.
Quick Answer
h9 is a tighter shaft tolerance than h10 and h11. For stainless steel bars, lower numbers mean narrower tolerance zones and higher precision, while the lowercase h indicates a shaft/bar tolerance where the upper deviation is zero.
In plain purchasing language, an h9 bar should not be larger than the nominal diameter. It may be slightly smaller within the allowed tolerance range. That is why buyers often review h9 for cold drawn bars, bright bars, precision shafts and CNC-machined components.
Why Tolerance Is the Hidden Contract in Bar Procurement
When a drawing says 20mm h9, the buyer is not only asking for a 20mm stainless steel bar. The buyer is asking for a diameter control window. If the supplied bar sits outside that window, the machining line may need extra turning, sorting, grinding or rejection handling.

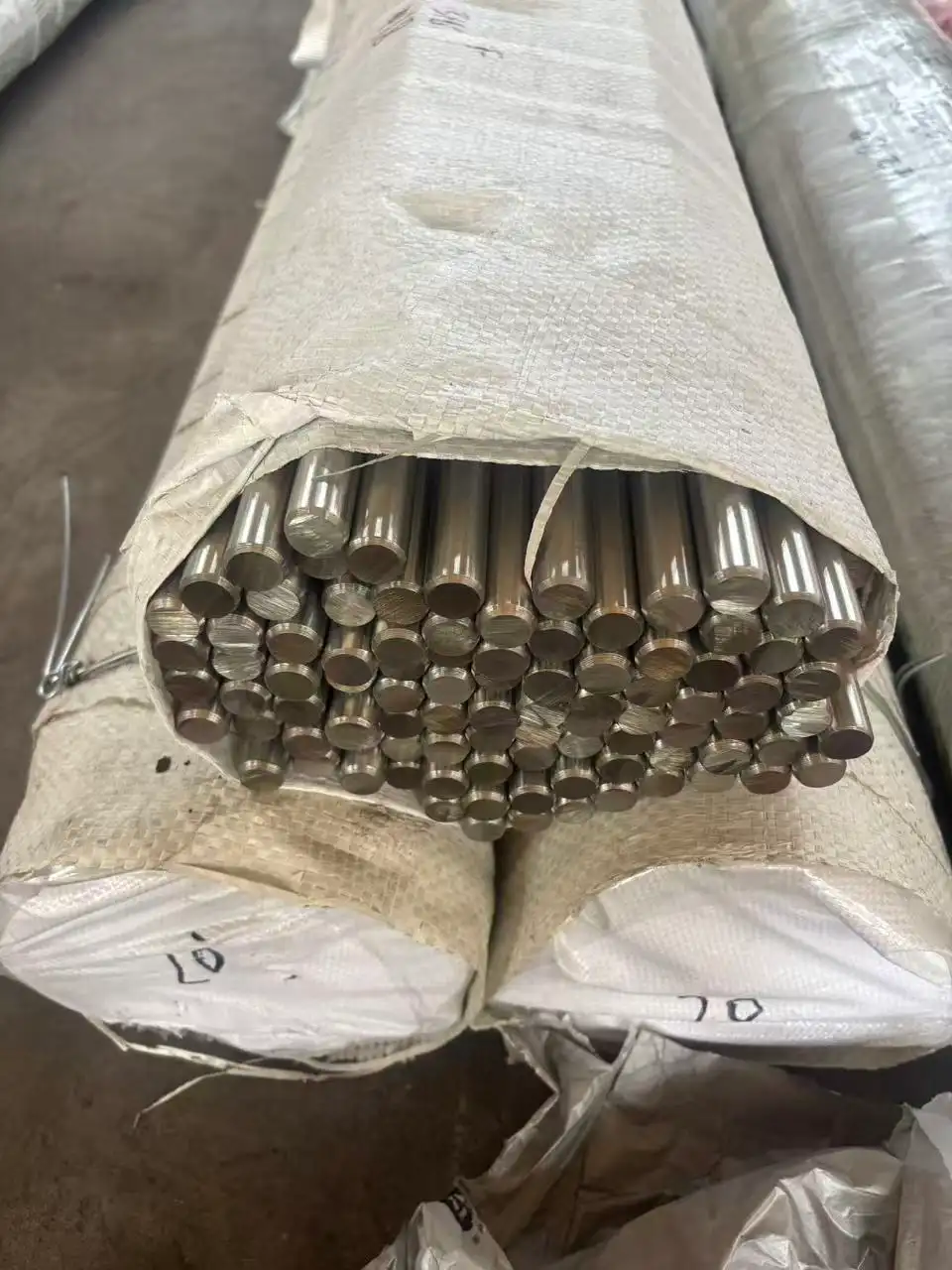

This matters even more for cold drawn bars. Cold drawing helps improve surface finish, straightness and dimensional control compared with basic hot rolled material. If you want to understand that process first, read our cold drawn stainless steel bar guide.
What Do h9, h10 and h11 Mean?
The lowercase h is used for shaft or bar tolerance position. For an h tolerance, the upper deviation is 0, which means the actual bar diameter should not exceed the nominal size. The lower deviation is negative, so the bar can be slightly smaller than nominal within the allowed range.
The number after the letter is the tolerance grade. A smaller number means a narrower tolerance zone. That is why h9 is tighter than h10, and h10 is tighter than h11. Tighter tolerance can support better fit and feeding stability, but it also increases production and inspection pressure.
h9 vs h10 vs h11 Tolerance Chart
The following table gives common ISO 286-2 shaft tolerance examples for selected nominal diameters. It is a practical reference for buyers comparing h9 vs h11 tolerance chart data before sending a stainless steel bar inquiry.
| Nominal Diameter | h9 Tolerance | h10 Tolerance | h11 Tolerance | Buyer Meaning |
|---|---|---|---|---|
| 10mm | 0 / -36 μm | 0 / -58 μm | 0 / -90 μm | h9 is much tighter for small precision parts. |
| 20mm | 0 / -52 μm | 0 / -84 μm | 0 / -130 μm | h9 is often reviewed for shafts and CNC feeding. |
| 50mm | 0 / -62 μm | 0 / -100 μm | 0 / -160 μm | h10 or h11 may fit general engineering use. |
Data note: tolerance values should be checked against the latest project drawing and applicable standard before production confirmation. This table is a limited sourcing reference, not a complete ISO standard table.
When Should Buyers Choose h9?
Choose h9 when the bar will be used for precision machining, automatic lathes, shaft work, controlled sliding fits or parts where the starting diameter strongly affects production stability. If the bar is too loose, the part may need extra machining allowance. If the tolerance is not controlled, repeated production can become inconsistent.
For CNC work, tolerance should also be considered together with grade. A very precise bar is still not ideal if the grade is difficult to machine for the part program. If machining performance is the main issue, compare the grade logic in our 303 vs 304 stainless steel bar machining guide.
When Are h10 and h11 Enough?
Choose h10 when the application needs better control than a loose general stock bar, but the final part does not require the tighter cost level of h9. It can fit many general engineering, fabrication and moderate machining jobs.
Choose h11 when the bar is mainly used for structural parts, blanks, supports or non-critical components where exact diameter fit is less important. In these cases, paying for h9 may not improve the final project enough to justify the extra processing cost.
Cold Drawn Bar Size and Weight Reference
For stainless steel bright bar size chart review, buyers usually need to check shape first. FX Stainless Steel can review round, hex and square bar supply depending on grade, size, finish and order quantity. You can also review the broader range on our stainless steel bar product page.
| Shape | Typical Review Range | Common Use | Tolerance Note |
|---|---|---|---|
| Round bar | 3 - 300mm | Shafts, pins, CNC turned parts | h8, h9, h10 and h11 can be reviewed by size and finish. |
| Hex bar | S5 - S75mm | Fasteners, valve parts, couplings | Across-flats size should be confirmed on the drawing. |
| Square bar | 4 - 100mm | Brackets, profile parts, machined blanks | Routine tolerance depends on size, finish and quantity. |
If you need a stainless steel bar weight calculation, send the shape, diameter or across-flats size, length and quantity. We can review the estimated weight before quotation. For Malaysia, Singapore and other buyers who use imperial drawings, it is helpful to include both metric and inch dimensions when available.
Cost Impact: Tighter Is Not Always Better
Tighter tolerance usually means more work. Depending on the size and finish, h9 may require more controlled cold drawing, straightening, centerless grinding, inspection or sorting. That is why the most economical choice is not always the tightest tolerance.
A practical rule is simple: use h9 when the part fit or machining process needs it, use h10 for balanced engineering control, and use h11 when a looser diameter range will not affect the final part.
Metric to Imperial Tip for Southeast Asia Buyers
Some Southeast Asia buyers, especially in Singapore and Malaysia, may receive drawings that mix metric and imperial units. Always confirm which unit controls the final order.
| Metric Size | Approx. Inch Size | Practical Note |
|---|---|---|
| 10mm | 0.394 in | Close to 25/64 in, but not the same as a controlled imperial bar size. |
| 20mm | 0.787 in | Often reviewed as a metric drawing size. |
| 50mm | 1.969 in | Close to 2 in, but tolerance must be confirmed separately. |
Do not convert only the nominal diameter and forget the tolerance. A small unit conversion mistake can be larger than the allowed h9 tolerance zone.
Why Work with FX Stainless Steel for Precision Bar Review?
FX Stainless Steel supports buyers before quotation by reviewing the grade, shape, nominal size, tolerance grade, finish and application together. For cold drawn and precision stainless steel bars, this may include cold drawing route discussion, straightness and surface review, MTC and heat number traceability, and pre-shipment dimensional checks where required.
We do not suggest choosing h9 simply because it sounds more precise. A good precision stainless steel bar supplier should first ask how the bar will be used, what the drawing requires, and whether h9, h10 or h11 is practical for the quantity and processing route.
Sources
ISO standard reference: ISO 286-2:2010, Geometrical product specifications (GPS) - ISO code system for tolerances on linear sizes - Part 2: Tables of standard tolerance classes and limit deviations for holes and shafts. ISO 286-1:2010 provides the basis of the ISO code system for tolerances on linear sizes.
Conclusion
For cold drawn stainless steel bars, h9, h10 and h11 are not just technical labels. They are purchasing decisions that affect fit, machining stability and cost. h9 is the tighter choice for precision machining and controlled fits. h10 is a balanced general engineering option. h11 is often enough when the application does not require close diameter control.
Frequently Asked Questions (FAQ)
Q. What does h9 tolerance mean for stainless steel bar?
A. h9 tolerance for stainless steel bar means a shaft/bar tolerance where the upper deviation is zero and the actual diameter is allowed to be slightly below the nominal size. It is commonly reviewed for cold drawn or bright bars used in precision machining.
Q. Is h9 better than h11 for CNC machining?
A. h9 is tighter than h11, so it is usually better for CNC turning, automatic lathe work, precision shafts and controlled fits. h11 can still be suitable for structural or non-critical applications where looser diameter control is acceptable.
Q. What is the difference between h9, h10 and h11?
A. The lowercase h indicates a shaft/bar tolerance position with zero upper deviation. The number shows the tolerance grade: h9 is tighter than h10, and h10 is tighter than h11. Lower numbers generally mean higher precision and higher processing cost.
Q. Does h9 tolerance increase stainless steel bar cost?
A. Yes, tighter tolerance usually increases stainless steel bar cost because it may require more controlled cold drawing, straightening, grinding, inspection or sorting. Buyers should choose h9 only when the application actually needs that level of diameter control.
Q. How do I specify cold drawn bar tolerance in an inquiry?
A. Send the grade, shape, nominal diameter or across-flats size, required tolerance grade such as h9, h10 or h11, length, quantity, surface finish and destination. The supplier can then review whether the requested cold drawn bar tolerance is practical before quotation.
